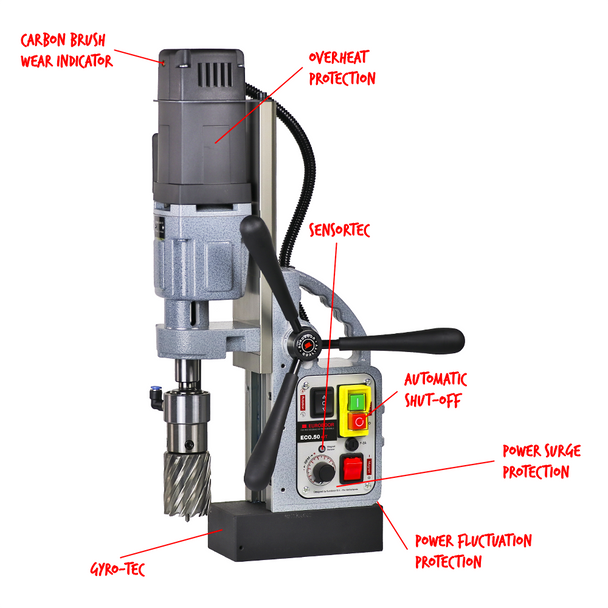

ERB ECO.50+/T Magnetic drilling machineØ 7/16" - 2" / 29.8 lbs
- SKU:
- 17441
- MPN:
- ERB ECO.50+/T
On Sale
Frequently bought together:
Description
ECO.50+/T
Magnetic drilling machine, 2", 110 V, US.
Magnetic drilling machine, annular cutters max. dia 2 inch, power supply tension 110 - 120 Volt, power supply frequency 60 Hertz, power supply connection plug according NEMA 5-15, rotation direction bidirectional.
Key Characteristics
- Right/left rotating functionality
- Electronic speed adjustment
- Two-speed gearbox
- Morse Taper 2 spindle with integrated tool cooling and lubrication
High-precision height adjustment for:
- Low maintenance
- Minimal wear correction
Integrated slide for:
- High accuracy
- Extended lifecycle
- Minimal vibration
- Overheat protection
Strong dual coil CNC machined 2-way magnet,
- Use less energy, generate less heat and therefore last longer
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of less quality
- Reduced risk of armature damage
- Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
| Connection | |
|---|---|
| minimum diameter threading (inch) | 1/8 |
| maximum diameter threading (inch) | 13/16 |
| minimum diameter annular cutters (inch) | 1/2 |
| maximum diameter annular cutters (inch) | 2 |
| minimum diameter countersinking (inch) | 3/8 |
| maximum diameter countersinking (inch) | 2 3/16 |
| minimum diameter twist drills (inch) | 1/16 |
| maximum diameter twist drills (inch) | 15/16 |
| connection 1 model | inside |
| connection 1 size (inch) | 3/4 |
| connection 2 morse taper / drill chuck class | MT3 |
| connection 1 type | Weldon |
| connection 2 model | outside |
| connection 2 type | morse taper |
| Dimensions | |
| stroke (inch) | 6 11/16 |
| magnet length (inch) | 6 11/16 |
| magnet width (inch) | 3 3/8 |
| magnet height (inch) | 1 7/8 |
| minimum height (inch) | 15 3/16 |
| maximum height (inch) | 21 1/4 |
| length (inch) | 12 5/8 |
| width (inch) | 8 1/4 |
| height (inch) | 21 1/4 |
| Properties | |
| rotation direction | bidirectional |
| type of gear box lubrication | grease |
| magnetic force (pound) | 4080 |
| electric rotation speed adjustment | yes |
| nett weight (pound) | 29.8 |
| system of measurement | inch (imperial) |
| application | drilling, countersinking, threading |
| Performance | |
| no-load minimum rotation speed gear 1 (rotations per minute) | 100 |
| no-load maximum rotation speed gear 1 (rotations per minute) | 280 |
| load rotation speed gear 1 (rotations per minute) | 250 |
| no-load minimum rotation speed gear 2 (rotations per minute) | 185 |
| no-load maximum rotation speed gear 2 (rotations per minute) | 530 |
| load rotation speed gear 2 (rotations per minute) | 460 |
| Supply | |
| motor power (Ampère) | 11.4 |
| total power (Ampère) | 12.5 |
| power supply frequency (Hertz) | 60 |
| power supply current | AC |
| power supply connection | plug according NEMA 5-15 |
| power supply source | mains supply |
| power supply type | electric |
| power supply tension (Volt) | 110 - 120 |
