Retaining Snap Rings

Rotor Clip Snap Ring External M16 Carbon Spring Steel Phosphate DIN 471 Groove Depth D 0.40 mm Free Diameter Df 14.70 mm Groove Diameter Dg 15.20 mm Shaft Diameter Ds 16.00 mm Maximum Section S max 2.20 mm Thickness T 1.00 mm Groove...

Rotor Clip Snap Ring External M17 Carbon Spring Steel Phosphate DIN 471 Groove Depth D 0.40 mm Free Diameter Df 15.70 mm Groove Diameter Dg 16.20 mm Shaft Diameter Ds 17.00 mm Maximum Section S max 2.30 mm Thickness T 1.00 mm Groove...

Rotor Clip Snap Ring External M18 Carbon Spring Steel Phosphate DIN 471 Groove Depth D 0.50 mm Free Diameter Df 16.50 mm Groove Diameter Dg 17.00 mm Shaft Diameter Ds 18.00 mm Maximum Section S max 2.40 mm Thickness T 1.20 mm Groove...

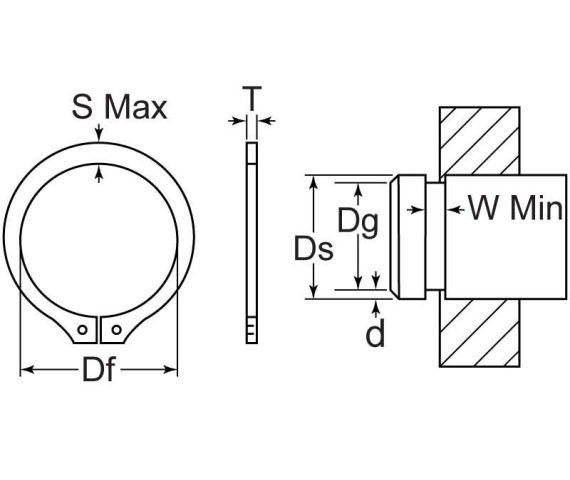

Snap Ring External M19 Carbon Spring Steel Phosphate DIN 471 Groove Depth D 0.50 mm Free Diameter Df 17.50 mm Groove Diameter Dg 18.00 mm Shaft Diameter Ds 19.00 mm Maximum Section S max 2.50 mm Thickness T 1.20 mm Groove Width W 1.30 mm

Snap Ring External M20 Carbon Spring Steel Phosphate DIN 471 Groove Depth D 0.50 mm Free Diameter Df 18.50 mm Groove Diameter Dg 19.00 mm Shaft Diameter Ds 20.00 mm Maximum Section S max 2.60 mm Thickness T 1.20 mm Groove Width W 1.30 mm

Snap Ring External M22 Carbon Spring Steel Phosphate DIN 471 Groove Depth D 0.50 mm Free Diameter Df 20.50 mm Groove Diameter Dg 21.00 mm Shaft Diameter Ds 22.00 mm Maximum Section S max 2.80 mm Thickness T 1.20 mm Groove Width W 1.30 mm

Rotor Clip Snap Ring External M35 Carbon Spring Steel Phosphate DIN 471 Groove Depth D 1.00 mm Free Diameter Df 32.20 mm Groove Diameter Dg 33.00 mm Shaft Diameter Ds 35.00 mm Maximum Section S max 3.90 mm Thickness T 1.50 mm Groove...

Rotor Clip Snap Ring External M41 Carbon Spring Steel Phosphate Rings on Wire DIN 471 Groove Depth D 1.25 mm Free Diameter Df 37.50 mm Groove Diameter Dg 38.50 mm Shaft Diameter Ds 41.00 mm Maximum Section S max 4.50 mm Thickness T 1.75...

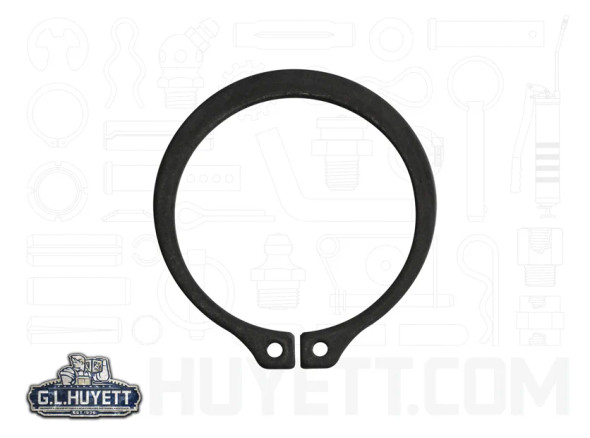

Rotor Clip Snap Ring External M44 Carbon Spring Steel Phosphate Rings on Wire DIN 471 Groove Depth D 1.25 mm Free Diameter Df 40.50 mm Groove Diameter Dg 41.50 mm Shaft Diameter Ds 44.00 mm Maximum Section S max 4.60 mm Thickness T 1.75...

Rotor Clip Snap Ring External M45 Carbon Spring Steel Phosphate Rings on Wire DIN 471 Groove Depth D 1.25 mm Free Diameter Df 41.50 mm Groove Diameter Dg 42.50 mm Shaft Diameter Ds 45.00 mm Maximum Section S max 4.70 mm Thickness T 1.75...

Rotor Clip Snap Ring External M48 Carbon Spring Steel Phosphate Rings on Wire DIN 471 Groove Depth D 1.25 mm Free Diameter Df 44.50 mm Groove Diameter Dg 45.50 mm Shaft Diameter Ds 48.00 mm Maximum Section S max 5.00 mm Thickness T 1.75...

Rotor Clip Snap Ring External M50 Carbon Spring Steel Phosphate Rings on Wire DIN 471 Groove Depth D 1.50 mm Free Diameter Df 45.80 mm Groove Diameter Dg 47.00 mm Shaft Diameter Ds 50.00 mm Maximum Section S max 5.10 mm Thickness T 2.00...
